DATA CENTER CEILINGS & WALLS DIVISION

DATA CENTER CEILING GRID

As the inventor of structural ceiling grid for data centers, Gordon’s Data Center Ceiling Grid System provides an array of features and benefits.

  • The ceiling design serves the dual purpose of both a drop ceiling system and structural ceiling grid for overhead utility distribution
  • The grid system provides an attachment or suspension platform for containment barriers, partitions, or surface mounted equipment
  • Greater installation and routing flexibility of distribution systems and partitions
  • Totally accessible overhead data center ceiling grid allows for simple expansion, upgrade or distribution system changes
  • Reduces the amount of interstitial support steel by up to 50%
  • Eliminates the need to have both strut grids for overhead distribution suspension and acoustical ceiling tile drop ceilings
  • No drop ceiling penetrations means no harmful debris that can damage electronic equipment
  • Ceiling grid components are non-progressive and removable, without compromising the structural integrity of the installed ceiling grid

Design attributes:

  • Load bearing ceiling design engineered to support direct suspension of overhead cable distribution and containment barriers
  • All ceiling extrusions have a continuous 3/8-16 (M-10 for metric) thread boss for attachment and/or suspension at any location
  • Die cast intersection connectors join the extruded aluminum grid members and provide an attachment point for 4’ x 4’ (1200mm x 1200mm) suspension from building structure
  • Perimeter ceiling trim can be fixed or floating for seismic compliance
  • Standard clear anodized finish, with options of black or white
  • Meets BS EN13964:2014
  • Meets ASTM E580

IMPERIAL

Two imperial Data Grid structural suspension options with DG 1.5 (Heavy) and DG 3.0 (Extreme) are available for load support for overhead cable and power distribution, walls and containment barriers.

METRIC

Two metric Data Grid structural suspension options with DG 1.5M (Heavy) and DG 3.0M (Extreme) are available for load support for overhead cable and power distribution, walls and containment barriers.

View our DG Ceiling Grid Installation Video on YouTube:

CEILING ACCESSORIES

LAY-IN PANEL OPTIONS

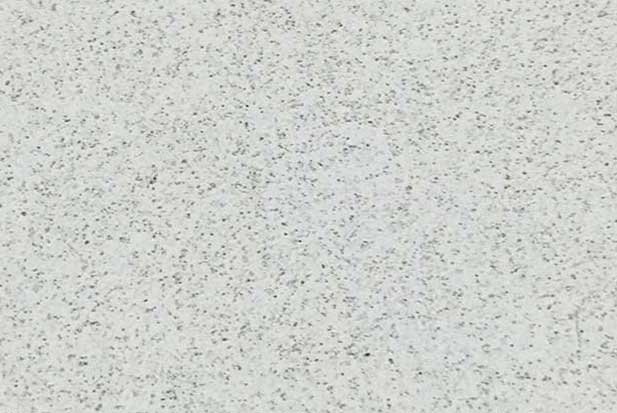

OCTAVE PANELS

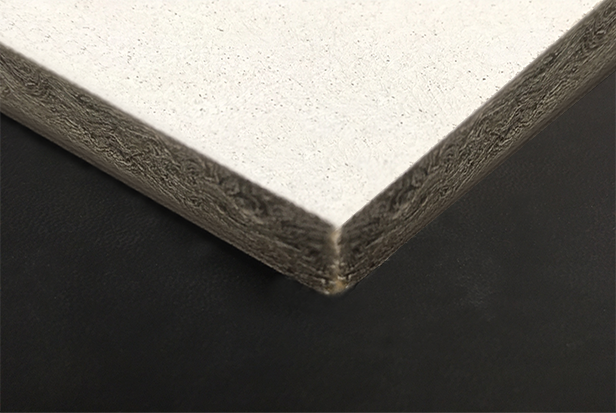

  • Material: Mineral wool tile, fleece-covered
  • Colors: White (Standard) or Black (Special Order)
  • Nominal 2′ x 2′ and 2′ x 4′ module sizes…..no field cutting required
  • Thickness: 5/8″
  • Sound Reduction: 33 dB, CAC 35 dB, NRC 0.80

DataVENT AIR RETURN PANELS

  • Cell size: 1/2″ x 1/2″
  • Panel height: 1/2″
  • 92% open area
  • Nominal 2′ x 2′, 2′ x 4′, 4′ x 4′ panel sizes. Custom sizes available upon request
  • Standard finish: White powder coat (Also available in Black

HONEYCOMB PANELS

  • Top and Face Plates: Aluminum Alloy 5052-H32, .032 Thick
  • Standard Finish: White Epoxy
  • Nominal 2′ x 2′, 2′ x 4′, 4′ x 4′ panel sizes
  • 1/4″ Thickness

TWIN WALL POLYCARBONATE PANELS

  • Perfect for luminous ceiling applications
  • 10mm thickness
  • Light reflectance = 33.9%
  • Nominal 2′ x 2′, 2′ x 4′, 4′ x 4′ panel sizes
  • Standard colors: White or clearcoat

DataLUME LIGHT PANELS

DataLUME LED Light Panels, available in 2′ x 2′ or 2′ x 4′ panels options, are specifically designed to lay-in DG suspension systems.

  • Panel frame is extruded aluminum, painted white
  • Ultra thin for narrow plenums
  • Fits standard T-bar and narrow grid drop ceilings
  • 7/8″ conduit knock out provided
  • c ETLus, Fcc Certified

DataLUME 2’ x 2’ LED Light Panels

LEDP2240W

DataLUME 2’ x 4’ LED Light Panels

LEDP2450W

PRODUCT DETAILS

SPECIFICATIONS

PRODUCT DETAILS

DG Imperial 1.5
Consolidated Set

Main / Cross Tee

24″ / 48″ Module

24-1/2″ / 48-1/2″ Module

Grid Isometric

4-Way Connector Isometric

MTS Connector Isometric

Intersection With Cable Tray Suspension Detail

24″ / 48″ Grid Plan

48″ / 48″ Grid Plan

Seismic Detail

Fixed Perimeter Isometric

Fixed Perimeter Section

Floating Perimeter Isometric

Floating Perimeter Section

Fixed Perimeter At Column Detail

Cable Tray Suspension Detail

Busway Suspension Detail

Load Adapter Detail

Splice Hanger Detail

24″ / 48″ Revit Isometric

DG Imperial 3.0
Consolidated Set

Main / Cross Tee

24″ / 48″ Module

24-1/2″ / 48-1/2″ Module

Grid Isometric

4-Way Connector Isometric

MTS Connector Isometric

Intersection With Cable Tray Suspension Detail

24″ / 48″ Grid Plan

48″ / 48″ Grid Plan

Seismic Detail

Fixed Perimeter Isometric

Fixed Perimeter Section

Floating Perimeter Isometric

Floating Perimeter Section

Fixed Perimeter At Column Detail

Cable Tray Suspension Detail

Busway Suspension Detail
Load Adapter Detail
Splice Hanger Detail

DG Metric 1.5
Consolidated Set

Main / Cross Tee

600mm / 1200mm Module

Grid Isometric

4-Way Connector Isometric

MTS Connector Isometric

Intersection With Cable Tray Suspension Detail

600mm / 1200mm Grid Plan

1200mm / 1200mm Grid Plan

Seismic Detail

Fixed Perimeter Isometric

Fixed Perimeter Section

Floating Perimeter Isometric

Floating Perimeter Section

Fixed Perimeter At Column Detail

Cable Tray Suspension Detail

Busway Suspension Detail

Load Adapter Detail

Splice Hanger Detail

600mm / 1200mm Revit Isometric

DG Metric 3.0
Consolidated Set

Main / Cross Tee

600mm / 1200mm Module

Grid Isometric

4-Way Connector Isometric

MTS Connector Isometric

Intersection With Cable Tray Suspension Detail

600mm / 1200mm Grid Plan

1200mm / 1200mm Grid Plan

Seismic Detail

Fixed Perimeter Isometric

Fixed Perimeter Section

Floating Perimeter Isometric

Floating Perimeter Section

Fixed Perimeter At Column Detail

Cable Tray Suspension Detail

Busway Suspension Detail

Load Adapter Detail

Splice Hanger Detail

SPECIFICATIONS

Imperial
DG 1.5

DG 3.0

Metric
DG Metric 1.5

DG Metric 3.0
