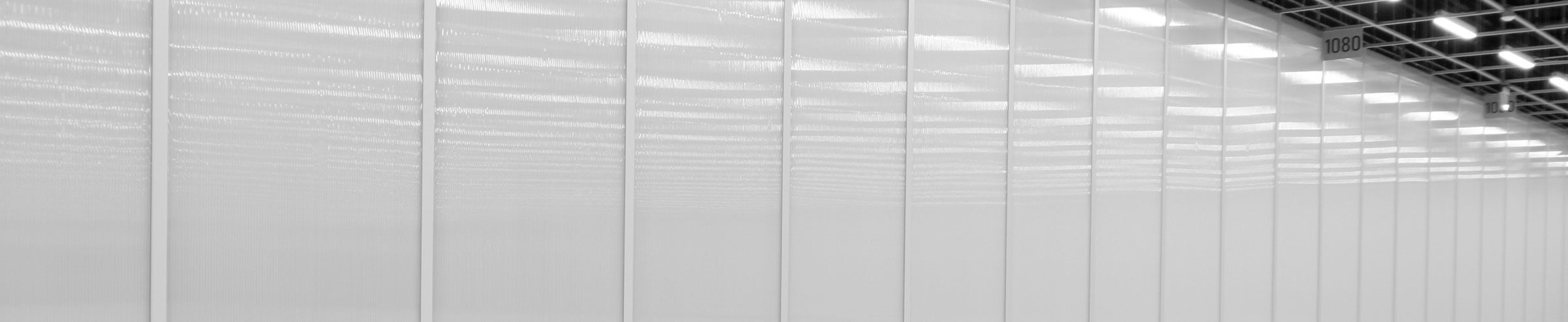

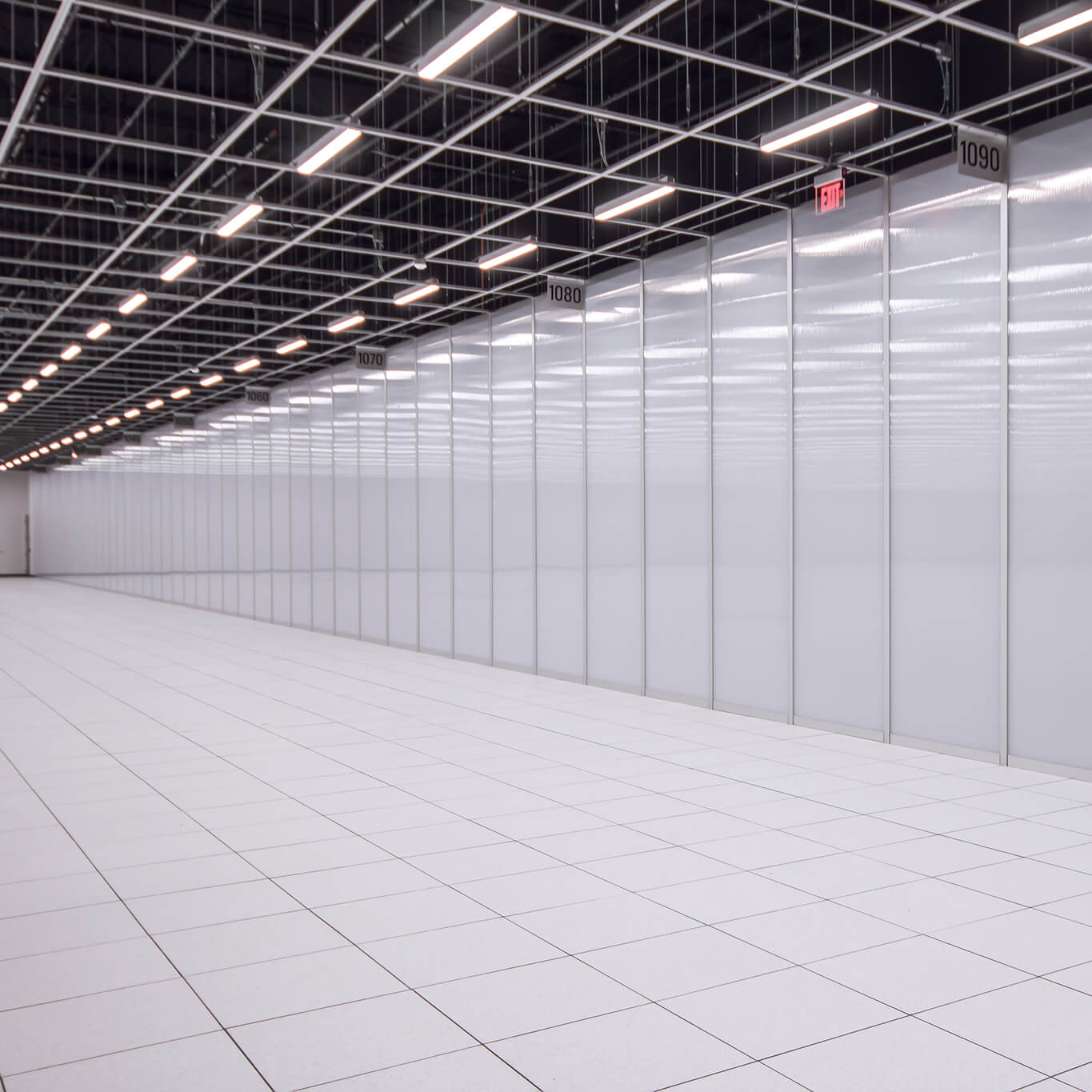

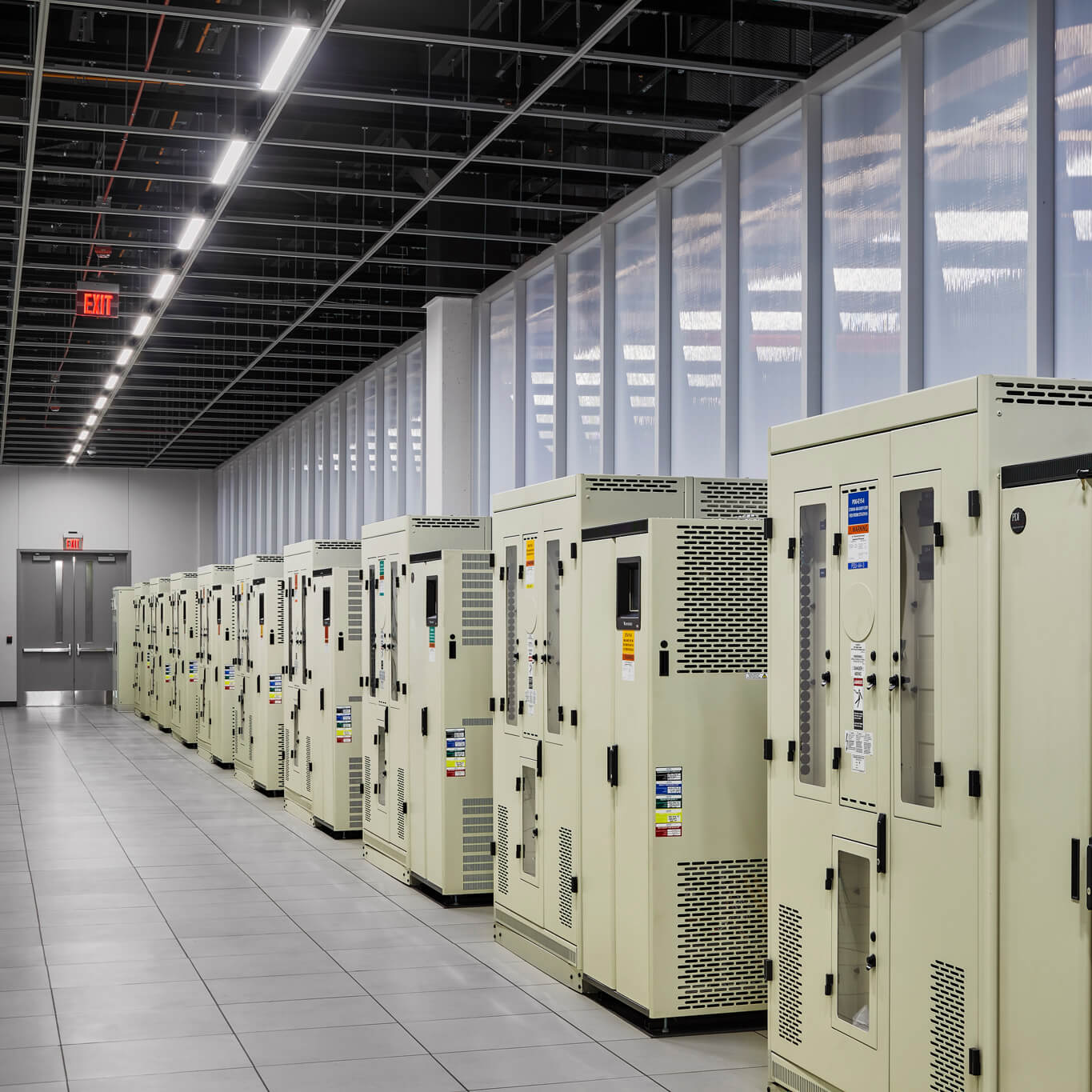

The Gordon Data Center Wall Partition is a demountable partition, providing a clean, secure barrier between equipment corridors and the data center hall. This modular design, data center wall partition is a non-progressive design, engineered to be easily assembled from only one side, with the head track attaching directly to the Gordon DG 1.5/1.5M/3.0/3.0M ceiling grid. In addition to being durable and structurally sound, the installed cost of Gordon’s Data Center Wall Partition is comparable to a finished gypsum board wall, but without the contamination associated with taping, floating, sanding, and painting inside the white space.

Data Center Wall Partition
Data Center Modular Wall

DATA CENTER WALL PARTITION

  • Modular, in standard 4’ (nominal) width partition wall panels to match grid array
  • Light in weight, easily handled components
  • Engineered for rapid installation…8-10 times faster than drywall construction!
  • Demountable partition
  • Non-progressive, wall construction allowing for removal of 1 or more partition wall panels from any location along the wall structure, thus facilitating equipment move in or relocation
  • Adaptable modular design to allow for multiple panel types (Structural polycarbonate, metal face over honeycomb-core or composite, solid polycarbonate). Standard panels are 16mm (5/8”) thick.
  • Class A rated components for flame spread/smoke generation
  • Extruded aluminum wall top, bottom, and panel-to-panel trims
  • Snap-together wall panel trims allow for easy installation and may be screw-attached for maximum security
  • Extruded aluminum wall partition start channels and 90-degree corners
  • Finish: aluminum extrusions are etched and Clear Anodized

PRODUCT DETAILS

Gordon Partition Wall – Consolidated Set

Front Elevation

Plan View
Isometric at Floor
Section at Floor
Isometric at Ceiling
Section at Ceiling

View the Data Center Wall Partition Installation Video on YouTube:
